Automatic Double Inverted Wire Hanger Forming Machine with 2.2KW Motor for Efficient Hanger Production

5
MOQ
Automatic Double Inverted Wire Hanger Forming Machine with 2.2KW Motor for Efficient Hanger Production
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Jenis mesin: mesin gantungan
berat: 1000kg
voltase: 380V
Kekuatan: 2,2kW
Kapasitas yang dirancang: 10 ~ 15 buah/menit
Kisaran ukuran gantungan: 17 ~ 19 inci
Diameter Kawat: φ4,0 ~ 4,5mm
Tenaga motor servo: 2 kw
Dimensi Keseluruhan: 2,4 × 1,0 × 1,6 m (mesin utama)
Dimensi pembayaran kawat: 1,2 × 1,2 × 1,0 m
Dimensi Pengepakan: 1,4 × 1,0 × 1,6 m (mesin utama)
Pengepakan pembayaran kawat: 1,2 × 1,2 × 1,0 m
Model: QK-5
Jenis operasi: Otomatis
komponen inti: Motor
Menyoroti:

2.2KW Motor Wire Hanger Machine

,

Automatic Operation Hanger Forming Machine

,

Double Inverted Type Automatic Wire Hanger Machine
Informasi dasar
Tempat asal: Jiangsu, Tiongkok
Nama merek: DURA
Syarat-syarat pembayaran & pengiriman
Deskripsi Produk

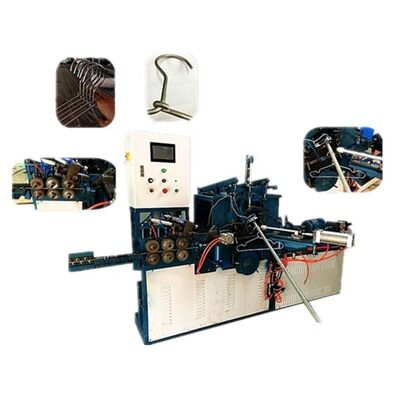

Automatic Double Inverted Aluminum Wire Hanger Forming Machine
Product Overview
High-performance automatic forming machine designed for efficient production of double inverted aluminum wire hangers with motor power of 2.2KW and 380V operation.
Automatic Double Inverted Wire Hanger Forming Machine with 2.2KW Motor for Efficient Hanger Production 0 Automatic Double Inverted Wire Hanger Forming Machine with 2.2KW Motor for Efficient Hanger Production 1 Automatic Double Inverted Wire Hanger Forming Machine with 2.2KW Motor for Efficient Hanger Production 2
Technical Specifications
Parameter Unit QK-5
Designed capacity pcs/min 10 ~ 15
Hanger size range inch 17 ~ 19"
Wire diameter applicable mm φ4.0 ~ 4.5
Motor power KW 2.2
Servo motor power KW 2
Weight KGS 1000
Overall dimensions (L×W×H) M 2.4 × 1.0 × 1.6 (main machine)
1.2 × 1.2 × 1.0 (wire payoff)
Packing & Delivery Information
Main Machine: Packing dimensions: 1.4 × 1.0 × 1.6M
Wire Payoff: Packing dimensions: 1.2 × 1.2 × 1.0M
Automatic Double Inverted Wire Hanger Forming Machine with 2.2KW Motor for Efficient Hanger Production 3
Customer Support Services
Automatic Double Inverted Wire Hanger Forming Machine with 2.2KW Motor for Efficient Hanger Production 4
Pre-Sales Services
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing and inspection
Automatic Double Inverted Wire Hanger Forming Machine with 2.2KW Motor for Efficient Hanger Production 5
After-Sales Services
  • Machine installation training
  • Machine operation training
  • Overseas engineering support services
