Pulley Type Wire Drawing Machine with 6.5mm Inlet Diameter 18KW Power and One Year Warranty

1
MOQ
Pulley Type Wire Drawing Machine with 6.5mm Inlet Diameter 18KW Power and One Year Warranty
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Diameter saluran masuk: 6,5~2,5mm
Diameter outlet: 2,5~0,75mm
Voltase: 380/415/440/220
Kekuatan: 11KW~18KW
Dimensi: 1520x810x1700mm
Berat: 1500kgs
Tipe katrol: OTO
Lulus menggambar maksimal: 1 - 10
Kekuatan Tarik: >110Kg/mm2
Diameter batang kawat maks: 6.5mm
Min kawat jadi dia: 0,75mm
Persentase pengurangan maksimal: 30%
Persen pengurangan yang dirancang: 78-88,5%
Kecepatan blok maks: 245 m/mnt
Rentang daya total: 7,5-30kw
Menyoroti:

6.5mm Inlet Diameter Wire Drawing Machine

,

18KW Power Wire Drawing Machine

,

One Year Warranty Wire Drawing Machine
Informasi dasar
Tempat asal: Jiangsu, Tiongkok
Nama merek: DURA
Sertifikasi: as per customer's request
Syarat-syarat pembayaran & pengiriman
Deskripsi Produk

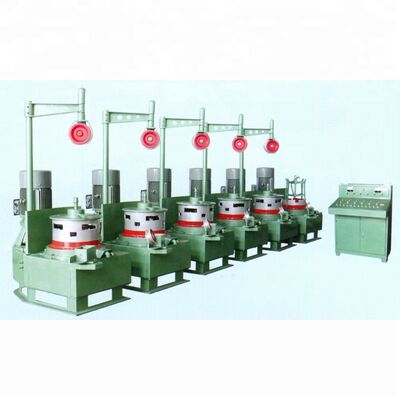

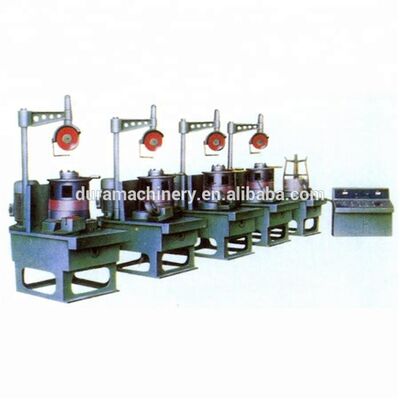

Wire Drawing Machine, Pully/OTO Type
Wire Drawing Machine For Making Nail
Usage
This pulley or OTO type wire drawing machine is an ideal equipment for drawing steel wire material of high, medium and low carbon steel, as well as copper, aluminum and alloy wire. These machines are widely applied in factories for nail, screw and rivet manufacturing.
Technical Specifications
Item Unit Continuous Multi-block Type
Model LW-n/560 | LW-n/450 | LW-n/350
Max. drawing pass (n) n: 1 - 10 | n: 1 - 8 | n: 1 - 8
Tensile strength of wire rod Kg/mm² >110 | 128 | >140
Max. dia. of wire rod mm 6.5 | 3.4 | 2.5
Min. dia. of finished wire mm 2.5 | 1 | 0.75
Typical configuration -- LW1-6/560 | LW1-7/450 | LW1-6/350
Max. average reduction percent % 30 | 20 | 21
Designed total reduction percent % 78-88.5 | 77.9 | 78
Max. speed of block m/min. 245 (block 6) | 346.9 (block 7) | 200 (block 6)
Total power kw 18.5-30 | 7.5-11 | 7.5-11
Weight kg 2000 | 1500 | 1000
Overall dimensions (L*W*H) mm 1700x1150x1750 | 1520x810x1700 | 1400x800x1500
