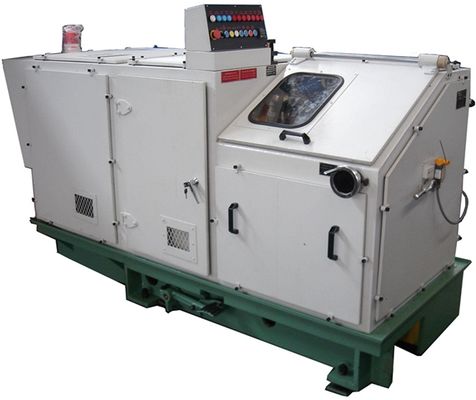

High Speed Type Steel Ball Cold Heading Machine, for forming steel ball blanks

Deskripsi Produk

HIGH SPEED STEEL BALL COLD HEADING MACHINE

This machine is designed to manufacture high quality ball-blanks with bearing steel materials such as: GB GCr15, AISI 52100, DIN 100Cr6; stainless steel materials like: AISI 304, 316, 410, 420, 440…etc. and carbon steel ball-blanks with materials like: AISI1010, 1012, 1045 & 1085 etc. It is a form of newly-designed structure, with high efficacy, less pressing deviation, low noise disturbance, good accuracy maintenance and high material utilizing ratio. No anchoring bolts are necessarily needed when the machine installed, as provides much convenience to end-users.

Model	ZS32-5	ZS32-8	ZS32-11	ZS32-14
Max Dia. of Steel-ball(mm)	5	8	11	14
Min Dia. of Steel-ball(mm)	2.5	3.5	5	7.5
Rated Output (pcs/min.)	700	600	420	350
Motor Power(kw)	5.5	11	30	30
Weight(kg)	3700	4200	11500	11500
Dimensions(L.W.H)(mm)	2600x998x1628	2850x1080x1685	5000×1700×2200	5000x1700x2200

High Speed Type Steel Ball Cold Heading Machine, for forming steel ball blanks 0

High Speed Type Steel Ball Cold Heading Machine, for forming steel ball blanks 1

High Speed Type Steel Ball Cold Heading Machine, for forming steel ball blanks 2

High Speed Type Steel Ball Cold Heading Machine, for forming steel ball blanks 3
